Integrated And Longlife 0.8% Sodium Hypochlorite Production Electrolysis
Principle:
CNJS-N series sodium hypochlorite generator is a newly and work through electrolysis of salt water , the whole system consists of electrolysis electrode assembly , rectification power and automatic control system , dissolving system , filtering system , ratio device and so on . The salt water is electrolyzed into sodium hypochlorite . Sodium hypochlorite is a kind of disinfection which can gets strong antivirus and bleach power :
Technical parameters:
| Type | Power(V/Hz) | concentration of liquid(mg/l) | available chlorine (Kg/h) | Flow (m3/h) | Salt consumption (kg/d) | Water consumption (m3/d) | Power consumption (kw) | Size(m) (l×w×h) |
| CNJS-20000 |
380V/50Hz
|
7-9 | 20 | 2.5 | 1680 | 60 | 65 |
1480*960*1980 |
Product features:
> Available chlorine: 7.0-9.0g/L ; > Power input: 380V, 50Hz ;
> Inlet water temperature : 5-27℃； > Inlet water pressure: 0.2-0.4Mpa；
> Salt consumption: 3.5kg/kg Cl2 ; > Water consumption: 125L/kg Cl2；
> Electrolytic liquid: 2.5~3% weak brine； > Content available CL: ≥8000ppm；
> Rated current: Determined according to the selected product model;
Work flow chart :
Automatic sodium hypochlorite generator system fully automatic production, contains the system
A, Automatic dissolving salt tank :Including salt tank , liquid level control , dissolving salt pump , electric valves , piping and other components which could automatic transmission salt , dissolving salt , saturated brine
B, Saturated brine filter :Including stainless steel two precision filter ,primary filtering accuracy 50um, secondary filtration precision 5um, use PP filter , the filter can be easily replaced, ensure clean brine ;
C, Dilute brine tank :The saturated brine and production water has been diluted with 2.5 % weak brine water , for the power solutions
D, Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system
E, Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment
F, Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine
G, Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output
Advantage on CNJY Products :
◆ The only material needed are salt and water . Salt can be safe and convenient transportation, storage, without any volatile and other toxic, no focus on chlorine needed hazards monitoring requirements on terror
◆ DC low voltage electrolysis, no high pressure, steam, heat and other hazards

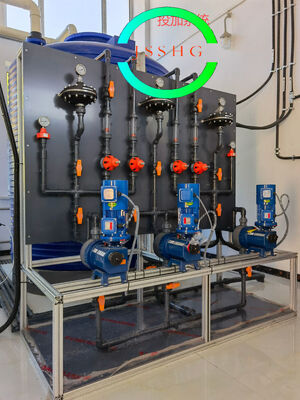

details:

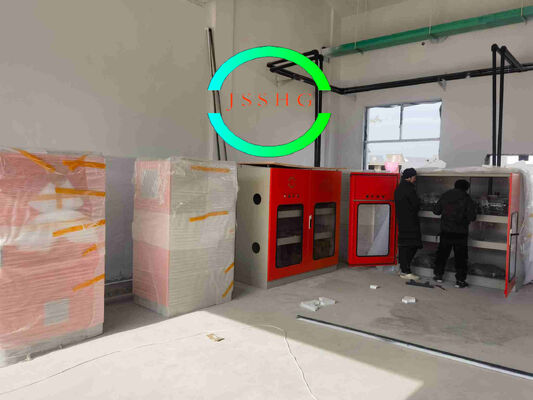

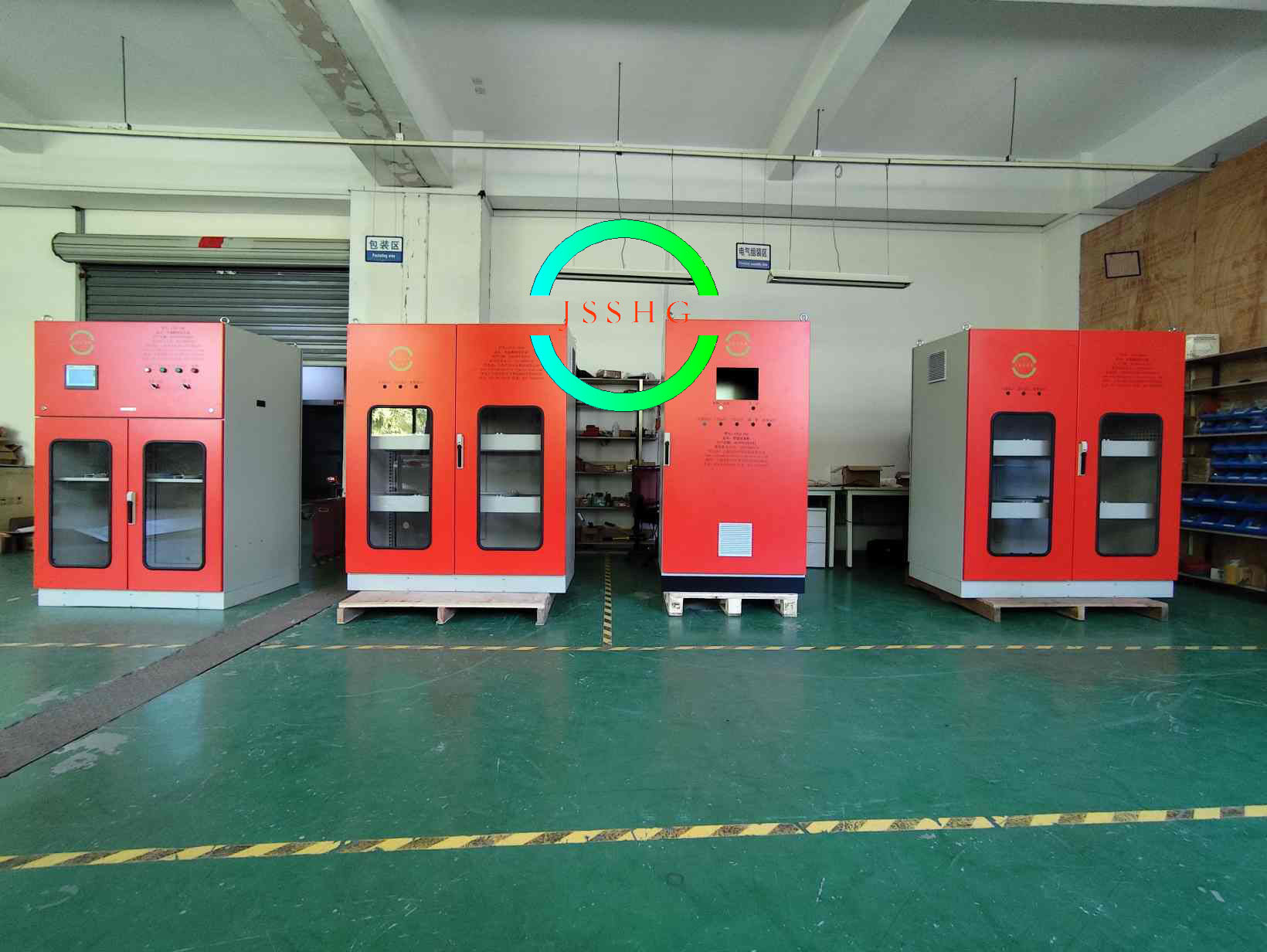

Workshop :
